25GBASE CPRI/eCPRI 5G Front-haul LWDM Optical Transceiver SFP28 series
Optical Transceiver
25GBASE CPRI/eCPRI 5G Front-haul LWDM Optical Transceiver SFP28 series

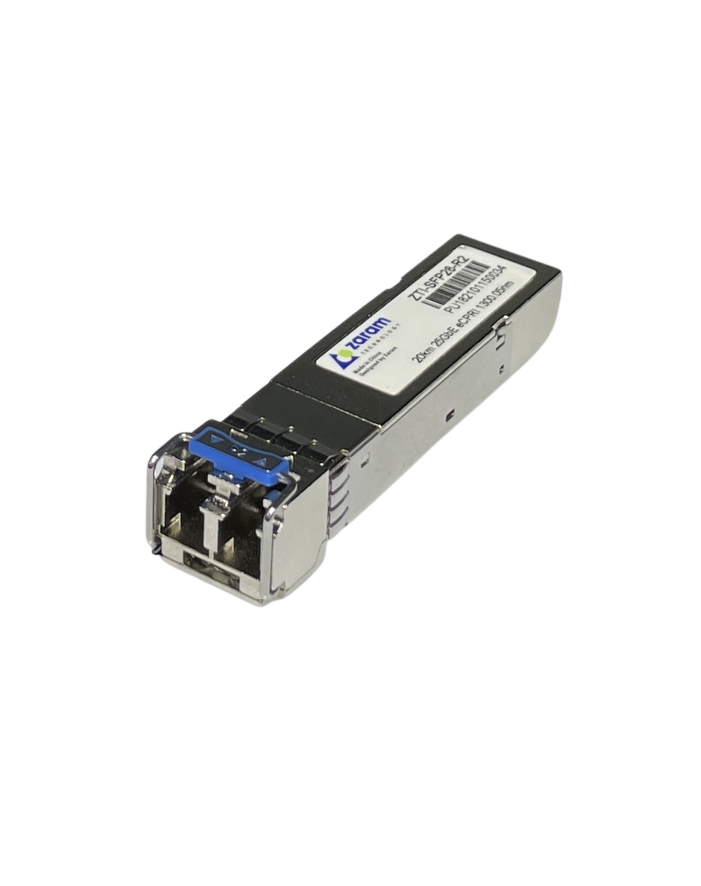

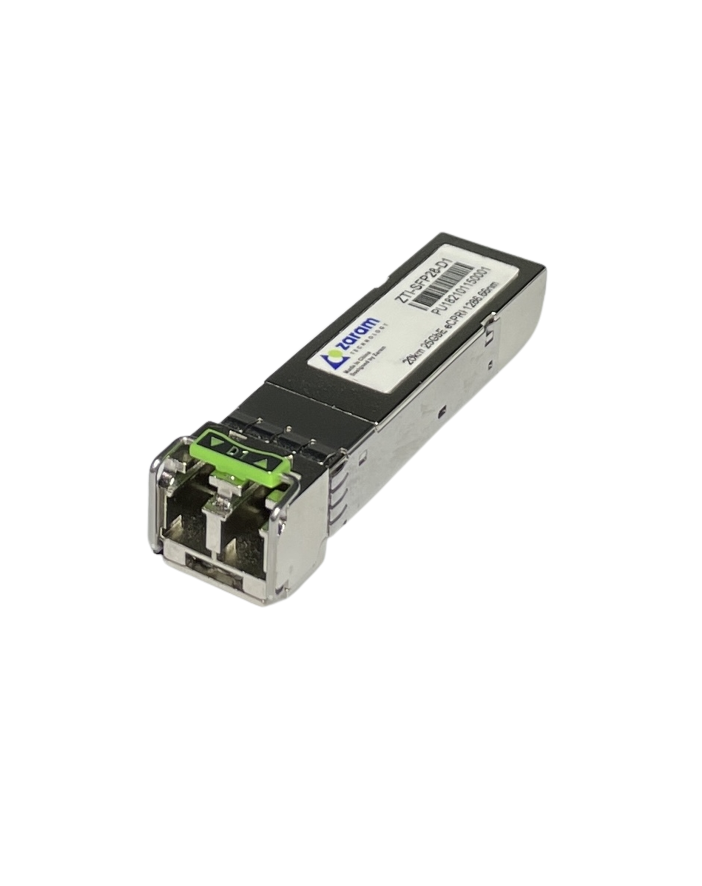

ZTI-SFP28-XX (XX: D1~3, R1~3)
Product Features
- Support 25GE and CPRI/eCPRI, with data rate up to 25.78125Gbps
- Hot pluggable SFP28 MSA form factor
- Duplex LC connector
- 1260~1620nm receiver with APD-TIA
- +3.3V power supply
- Operation case temperature -40 ~85°C for industrial
- RoHS compliant
Specification
ZTI-SFP28-XX (XX: D1~3, R1~3) Parameter
| ZTI-SFP28-XX (XX: D1~3, R1~3) | |
|---|---|
| Link Distance | 18dB Link budget, up to 20km transmission distance over SMF |

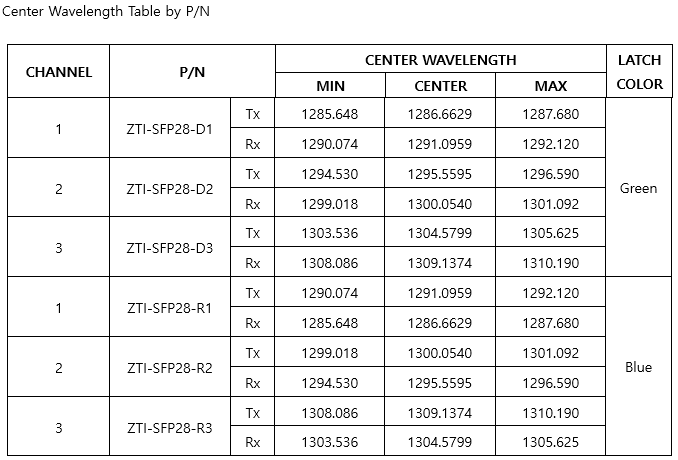

| Center Wavelength | 1285.64 ~ 1310.19nm |
| Average Optical power | +2.0 ~ +6.0dBm |
| Average receive power | ≤ -16.0dBm |
| Damage Threshold | ≤ -4.0dBm |
