Optical Transceiver

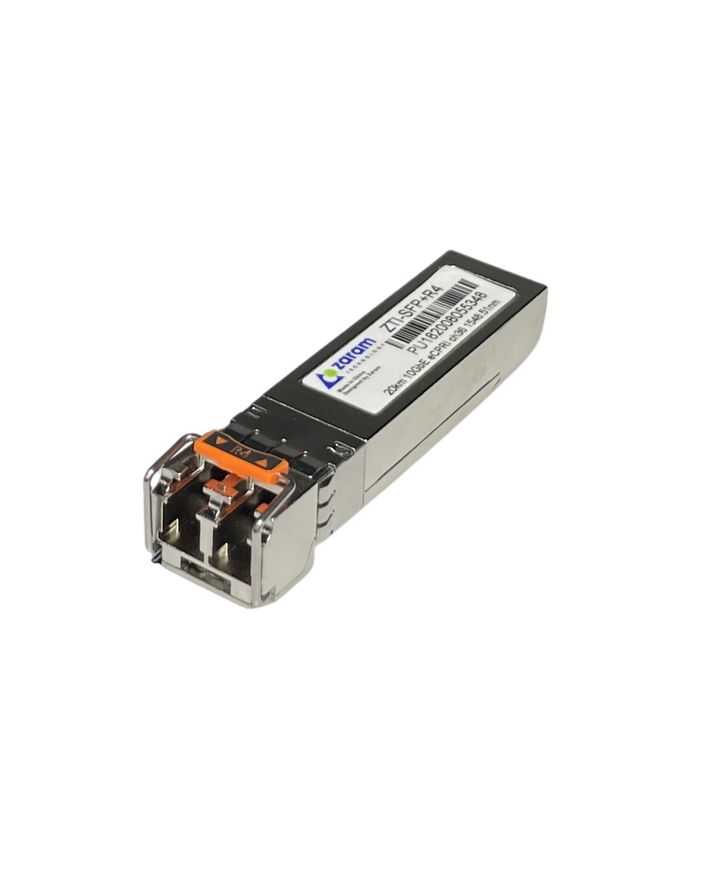

10GBASE CPRI/eCPRI 5G Front-haul DWDM Optical Transceiver SFP+ series
ZTI-SFP+XX (XX: D1~9, R1~9)
Product Features
  • Support 10GE and CPRI/eCPRI, with data rate 9.8 to 11.3Gb/s
  • Compliant with SFF-8431, SFF-8432
  • Hot pluggable SFP MSA form factor
  • Duplex LC connector
  • 100GHz ITU-T Grid C-band DWDM wavelength
  • +3.3V power supply
  • Operation case temperature -40 ~85°C for industrial
  • RoHS compliant
Specification
ZTI-SFP+XX (XX: D1~9, R1~9) Parameter
ZTI-SFP+XX (XX: D1~9, R1~9)
Link Distance Up to 24dB link-budget for 20km transmission distance over 9/125um SMF, with TEC

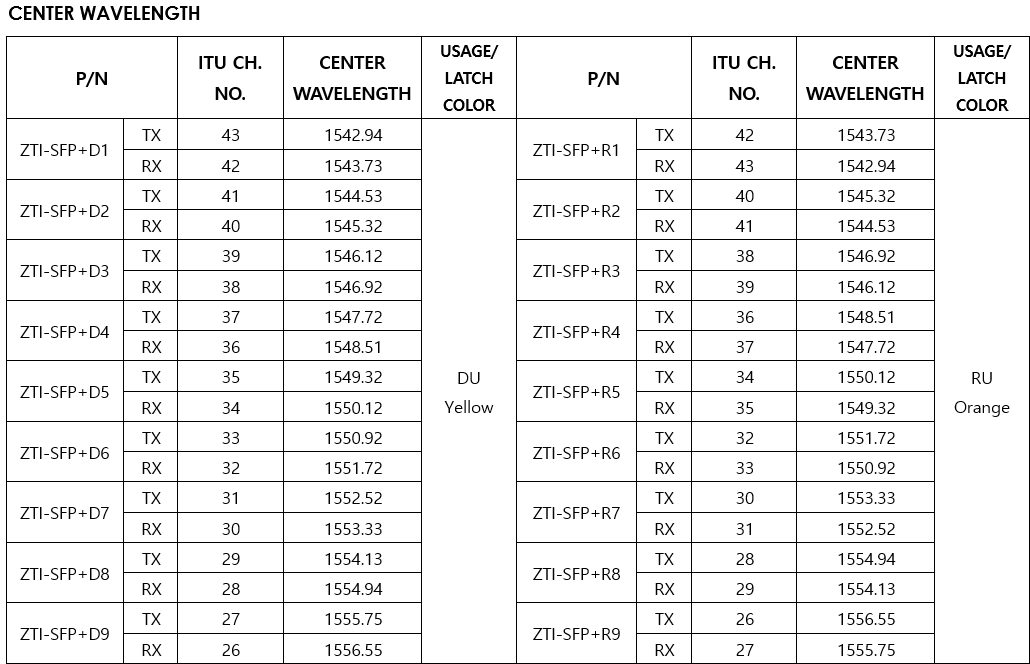

Center Wavelength 1542.94 ~ 1556.55nm
Average Optical power 0 ~ +4.0dBm
Average receive power ≤ -24.0dBm
Damage Threshold ≤ -7.0dBm
