Optical Transceiver

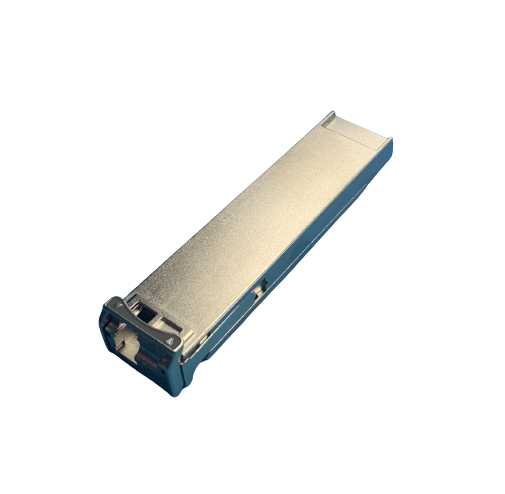

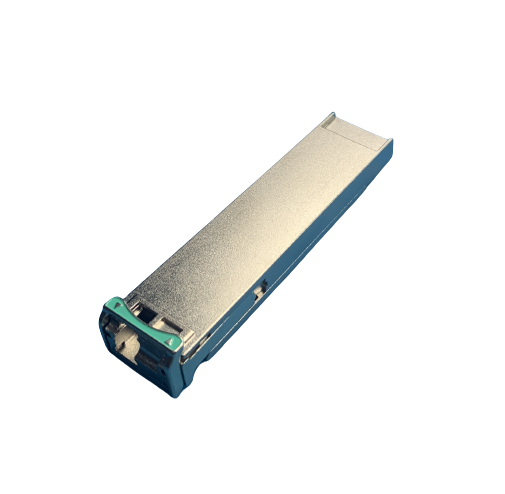

10GBASE Optical Transceiver XFP Bi-Di series
LTI-XFP-BR10K-27/33, LTI-XFP-BR40K-27/33
Product Features
- UP to 10.3125Gb/s bit rates
- Compliant with IEEE 802.3ae 10Gigabit Ethernet Standard
- Compliant with SFF-8472
- Small Form Pluggable with LC simplex connectors
- +3.3V power supply
- Operating case temperature: 0~70℃
- RoHS compliant
Specification
LTI-XFP-BR10K-27/33, LTI-XFP-BR40K-27/33 Parameter

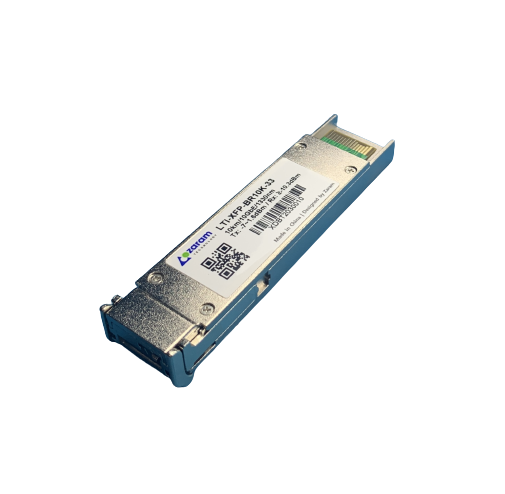

| LTI-XFP-BR10K-27/33 | |
|---|---|
| Link Distance | Up to 10km on SMF |
| Center Wavelength | 1270nm / 1330nm |
| Average Optical power | -7.0 ~ +1.6dBm |
| Average receive power | ≤ -10.3dBm |
| Average Max. Optical Input Power | ≤ +0.5dBm |

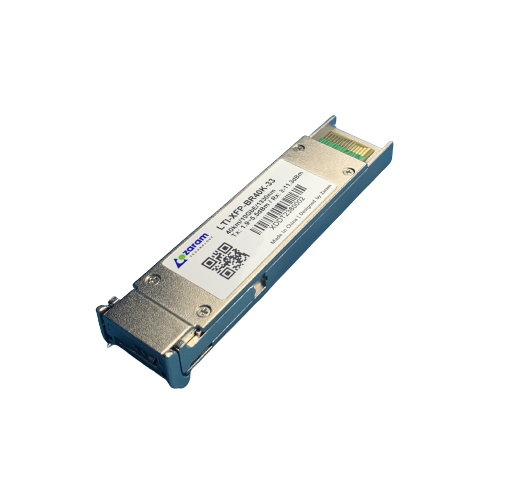

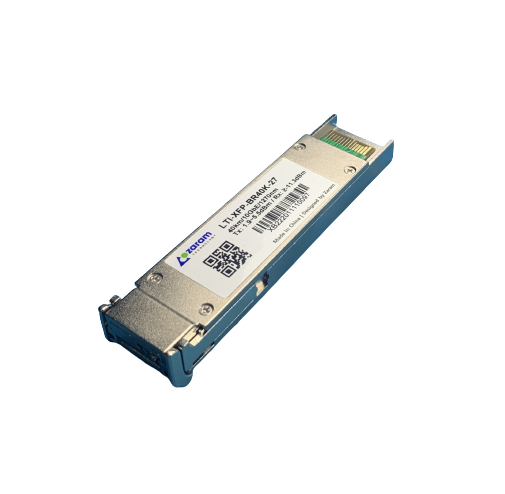

| LTI-XFP-BR40K-27/33 | |
| Link Distance | Up to 40km on SMF |
| Center Wavelength | 1270nm / 1330nm |
| Average Optical power | +1.9 ~ +5.5dBm |
| Average receive power | ≤ -11.3dBm |
| Average Max. Optical Input Power | ≤ -1.0dBm |
