Gigawire
Gigawire 2.0 Access Outdoor Solution L20204DCP(Coax/4ports)
L20204DCP(Coax/4ports)
Product Features

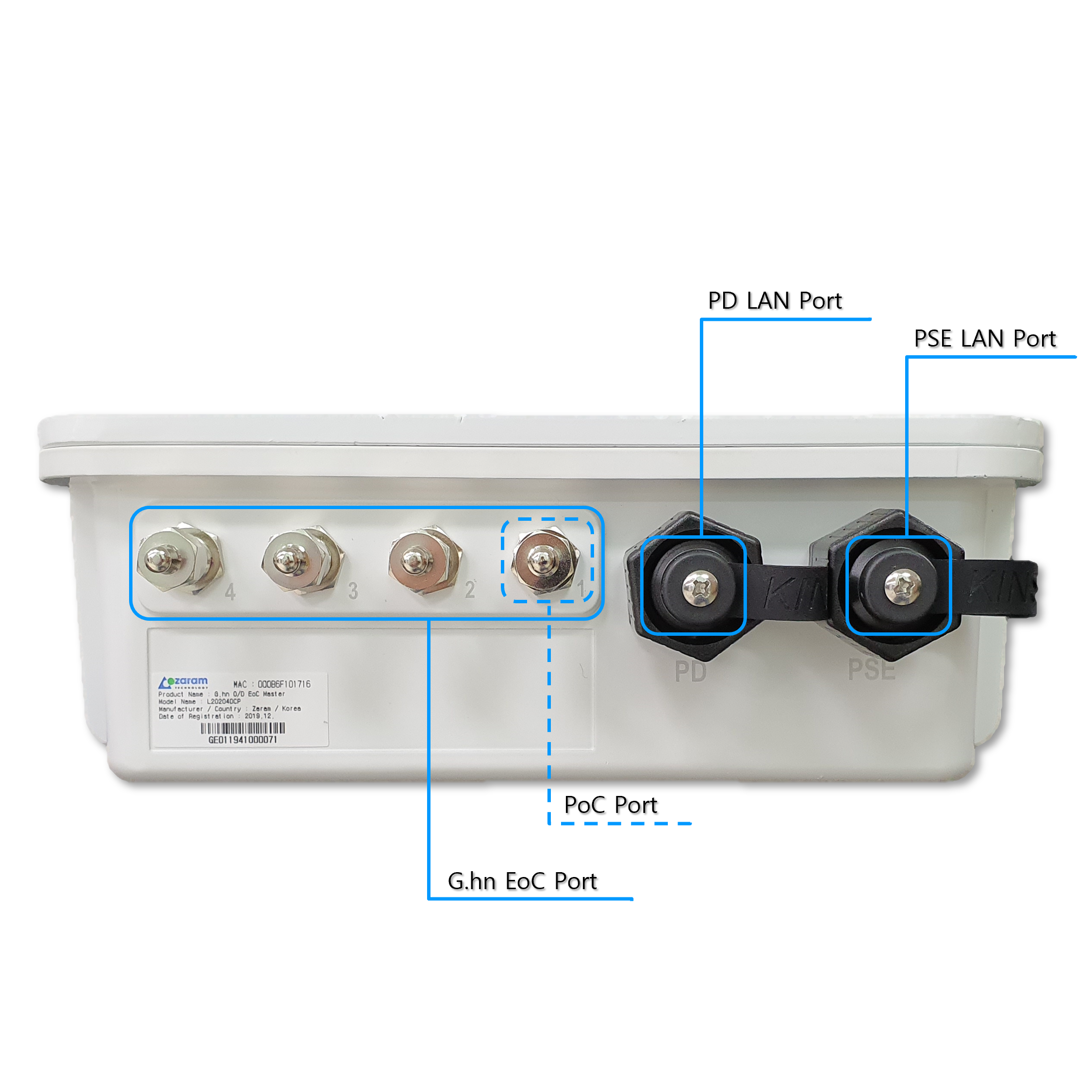

- 1 x PD LAN port(Uplink/Only System Power)
- 1 x PSE LAN port(PSE Work at PoC Connection)
- 4port Coax ports(1Port PoC: System Power & PSE Power)
- Connect by telnet(default: 192.168.10.254)
- Marvell PonCAT3 High Performance Switch & Processor with Network Acceleration Hardware
- G.hn Chipset : 88LX5153/2730, G.hn Digital & AFE Processor
- Uplink Chipset: 88E2110
- Outdoor Mounting
- 306(D) x 206(w) x 68(H)mm
- Switching Fabric : 88Gbps
- Syslog, SNMPv2, RMON, SSH, TFTP, FTP
- Security by using password for log-in via Telnet
- NTP, Port mirroring, TCP DUMP
- LED: Power, System Active(Not visible from outside)
Specification
L20204DCP
| Main Chipset | Marvell PonCAT3 High Performance Switch & Processor with Network Acceleration Hardware |
|---|---|
| G.hn Chipset | 88LX5153/2730, G.hn Digital & AFE Processor |
| Uplink Port | 1 x PD LAN port (Uplink/Only System Power), 1 x PSE LAN port (PSE Work at PoC Connection) |
| Downlink Port | 4ports Coaxial F Connector(1 port PSE Work at PoC Connection) |
| Dimension | 306(D) x 206(w) x 68(H)mm |
