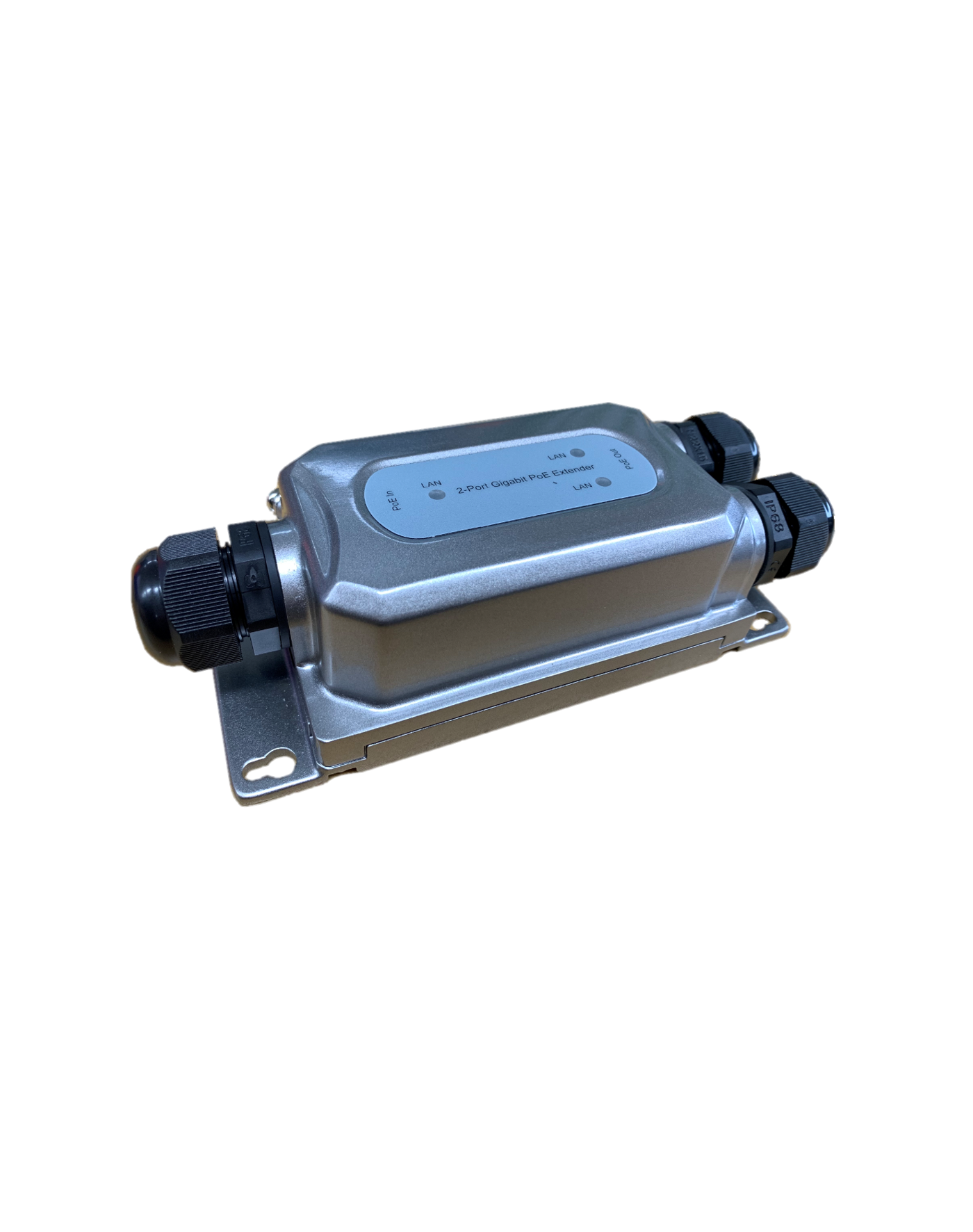

2 Ports Gigabit IP67 Waterproof PoE Extender
자람테크놀로지 제품 이미지
Others
2 Ports Gigabit IP67 Waterproof PoE Extender
ZTI-POE-EXD30
Product Features
  • Compliant with Isolation and Channel Characteristics of IEEE 802.3af/at/bt
  • Full Protection-OCP, OVP (Over Voltage/Current, Short Circuit Protection) and Surge
  • Metal shell, protection level IP67, IK10 vandal proof
  • Complete unit does not require power adapter
  • 60W PD Input, Two PSE output 30W(per each port)
  • 10/100/1000Mbps data transmission and PoE power supply distance up to 100M
  • It's ideal for harsh outdoor environment
Specification
ZTI-POE-EXD30 Specifications
ZTI-POE-EXD30
DC Output Voltage(per each port) 46 ~ 55VDC
DC Output Current(per each port) 0A ~ 0.5A
DC Input Voltage 44 ~ 57VDC (max. 90W)
Temperature Operation -20 to +60°C / Non-operation -40 to +80°C
Humidity Operation 10% to 90%
