1G / 10G PoE(Power Over Ethernet) Adapter series
LTI-POE-PSE60A, LTI-POE-PSE360, ZTI-10GE-POE60, ZTI-10GE-POE90
Product Features
- Compliant with Isolation and Channel Characteristics of IEEE 802.3af/at and 802.3bt
- Full Protection-OCP, OVP (Over Voltage/Current, Short Circuit Protection) and Surge
- Data and Power carried over one Ethernet Cable
- DC Good LED
- Non-Vented Case
- Application
- - IP Telephone
- - Security Camera
- - Wireless Network Access Point / Femto Cell Access Point
- - IP Print Server
- - Blue Tooth Access Point
Specification
LTI-POE-PSE60A, ZTI-POE-PSE90, LTI-POE-PSE360 Specifications
| LTI-POE-PSE60A | |
|---|---|
| Data Rate | 10M/100M/1000MBASE-T RJ45 copper interfaces |
| DC Output Voltage | 46 ~ 57VDC |
| Max. Output Power | Max. 60W |
| AC Input Voltage Range | 88 to 264VAC |

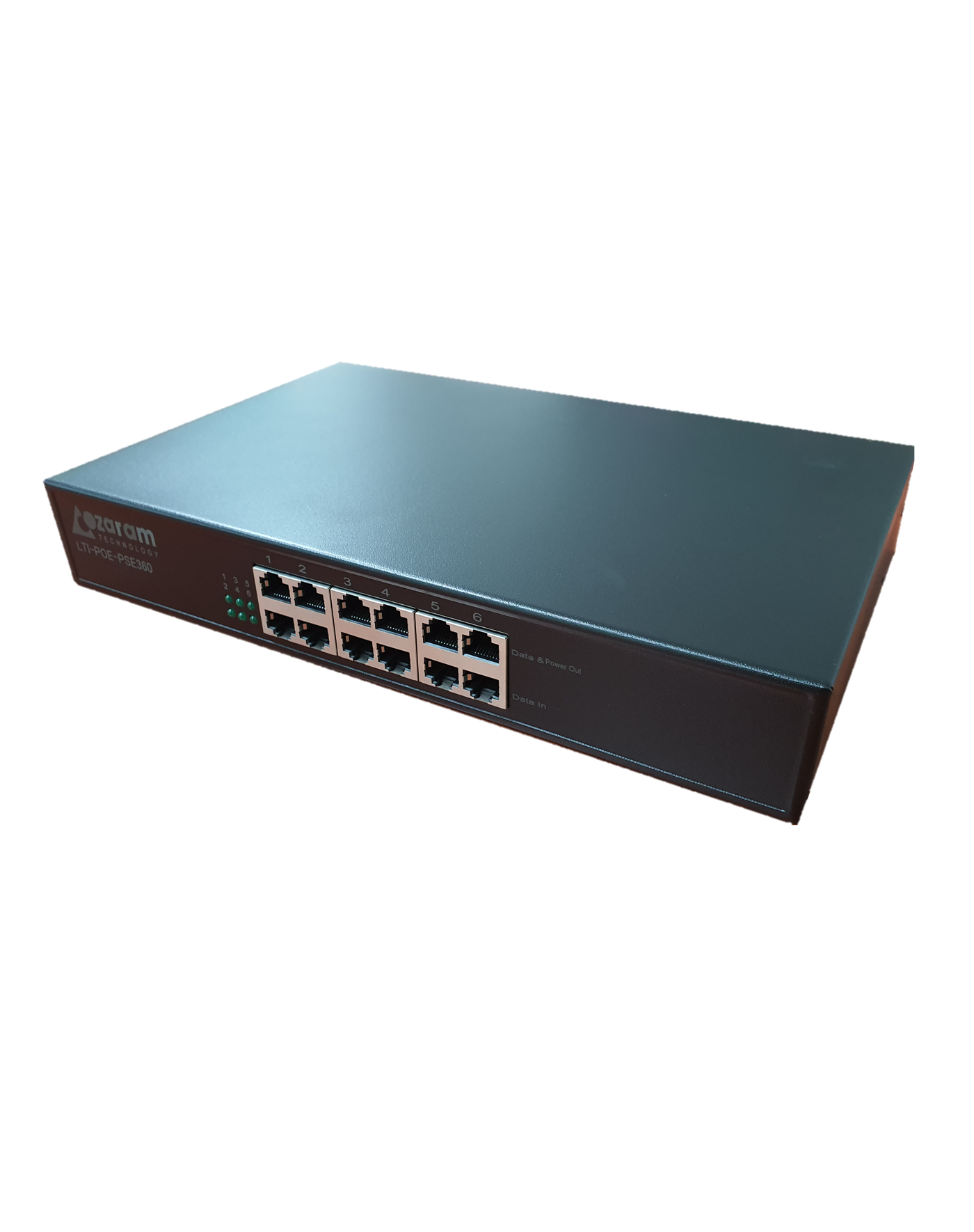

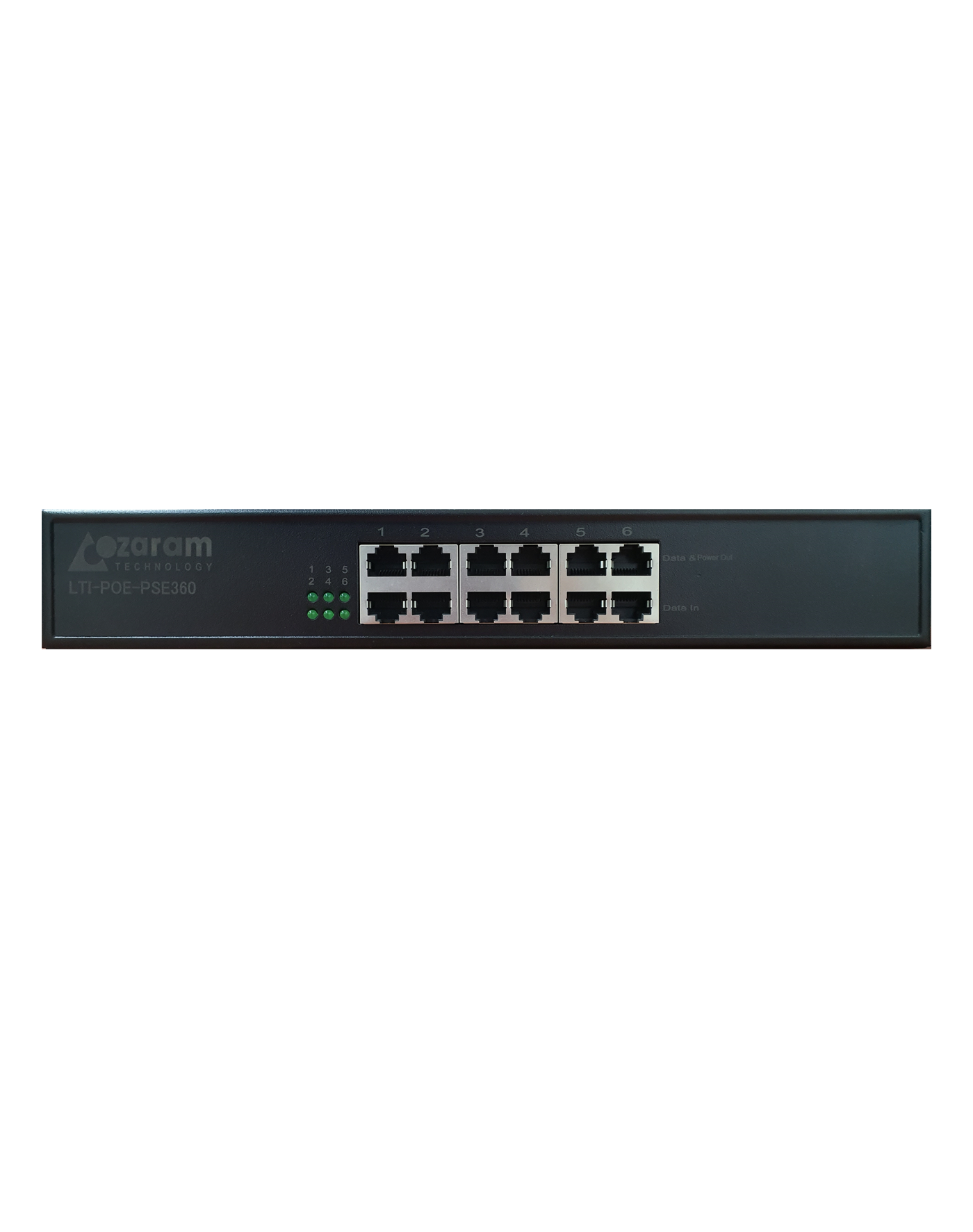

| LTI-POE-PSE360 | |
| Data Rate | 10M/100M/1000MBASE-T RJ45 copper interfaces (per port) |
| DC Output Voltage | 55VDC |
| Max. Output Power | 1ch 1.1A, Total 6ch Up to 6.6A, 360W |
| AC Input Voltage Range | 110 to 240VAC |
| ZTI-10GE-POE60 | |
| Data Rate | 10M/100M/1G/2.5G/5G/10GBASE-T RJ45 copper interfaces |
| DC Output Voltage | 46 ~ 57VDC |
| Max. Output Power | Max. 60W |
| AC Input Voltage Range | 90 to 260VAC |
| ZTI-10GE-POE90 | |
| Data Rate | 10M/100M/1G/2.5G/5G/10GBASE-T RJ45 copper interfaces |
| DC Output Voltage | 48 ~ 57VDC |
| Max. Output Power | Max. 90W |
| AC Input Voltage Range | 100 to 240VAC |
