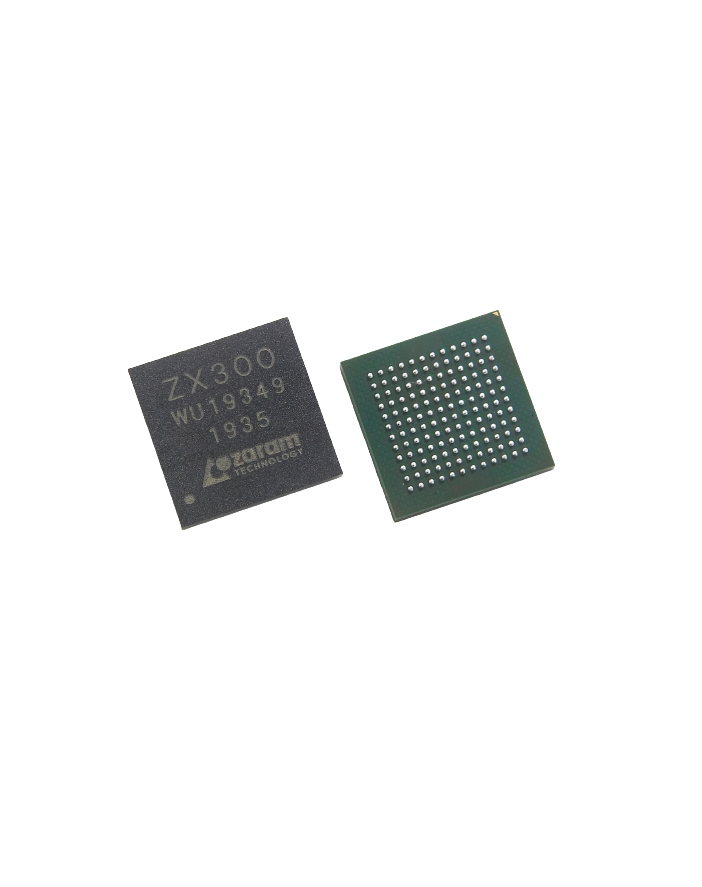

ZX300 - XGSPON SOC
ZX300 is the SOC providing cost effective, lowest power consumption and highly integrated with a wide range of solutions including pluggable SFP+ ONUs.
Product Features
- 1. GPON MAC common features
- 32-TCONT
- 128 XGEM Port-ID for downstream and upstream
- Frame size : 64 byte ~ 10K byte
- XGEM Port-ID base output Queues
- 1.5M byte shared upstream buffer
- Upstream output scheduling : Strict-Priority + WRR
- OMCI messages processing (ITU-T G.988)
- Performance monitor
- 2. XGPON, XGSPON, NGPON2 MAC(ITU-T G.9807.1)
- Downstream forward error correction RS(248,216) decoder
- Upstream Forward error correction RS(248,216) encoder
- Downstream security AES128 counter mode decryption
- Upstream security AES128 counter mode encryption
