Optical Transceiver
40GBASE Optical Transceiver QSFP+ series

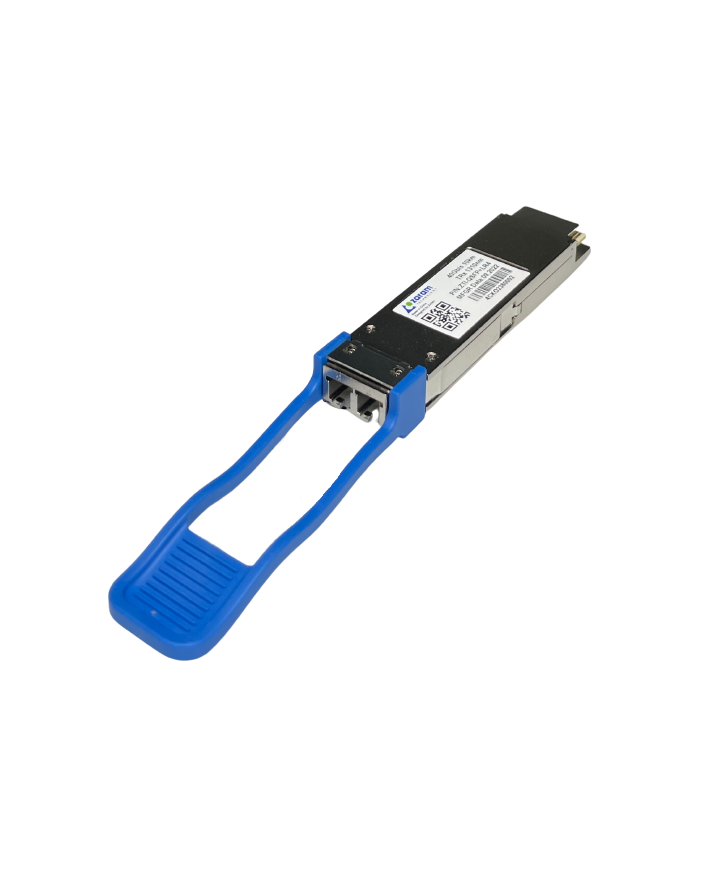

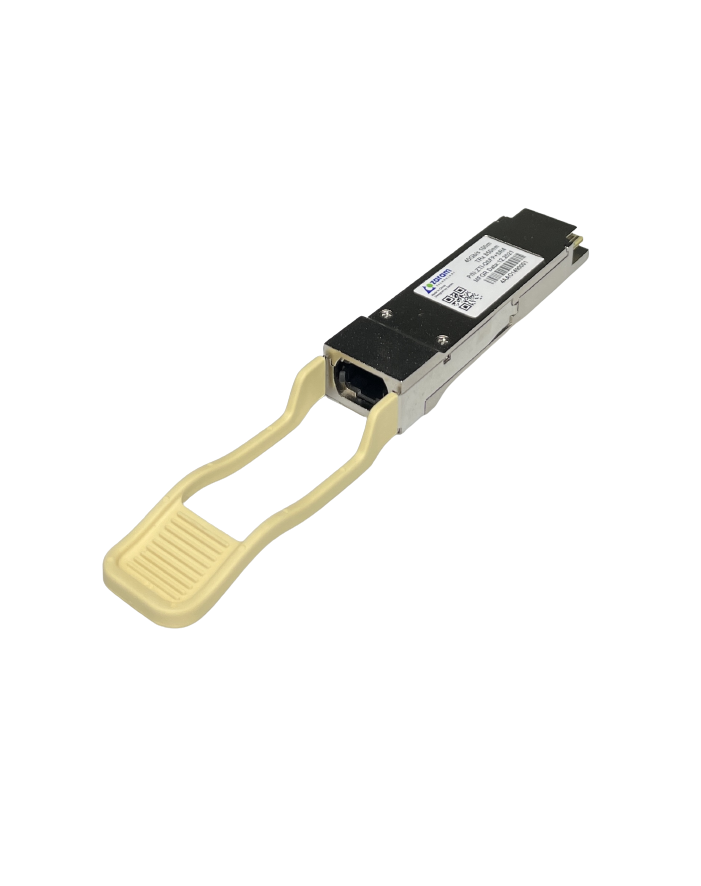

ZTI-QSFP+SR4, LR4
Product Features
- Lane data rate up to 11.2Gbps per channel bandwidth
- Hot pluggable QSFP MSA form factor
- Single +3.3V power supply
- Operating case temperature: 0~70℃
- RoHS-6 compliant
Specification
ZTI-QSFP+SR4, LR4 Parameter
| ZTI-QSFP+SR4 | |
|---|---|
| Link Distance | Up to 100m OM4 MMF transmission / Up to 70m OM3 MMF transmission |
| Lane Wavelength | 850nm |
| Average Launch Power, each Lane | -7.6 ~ +2.4dBm |
| Average Receive Power, each Lane | ≤ -9.5dBm |
| Damage Threshold, each Lane | ≤ +2.5dBm |
| ZTI-QSFP+LR4 | |
| Link Distance | Up to 10km reach for G.652 SMF |
| Lane Wavelength | Lane0: 1271nm, Lane1: 1291nm, Lane2: 1311nm, Lane3: 1331nm |
| Average Launch Power, each Lane | -7.0 ~ +2.3dBm |
| Average Receive Power, each Lane | ≤ -10.0dBm |
| Damage Threshold, each Lane | ≤ +3.3dBm |
